RMS RADIUS BENDER

The RMS Radius Bender is capable of bending all grades of rebar up to imperial #11 [36mm]. Powered by a 5hp motor and controlled by a 7.5hp variable frequency drive, the radius machine offers variable speed bending, forward and reverse operation, and soft starts and stops for increased motor life.

The RMS Radius Bender Micro Controller is user-friendly to help with training new operators. The controller offers unique capabilities like storing bend data for each bar size and radius or diameter.

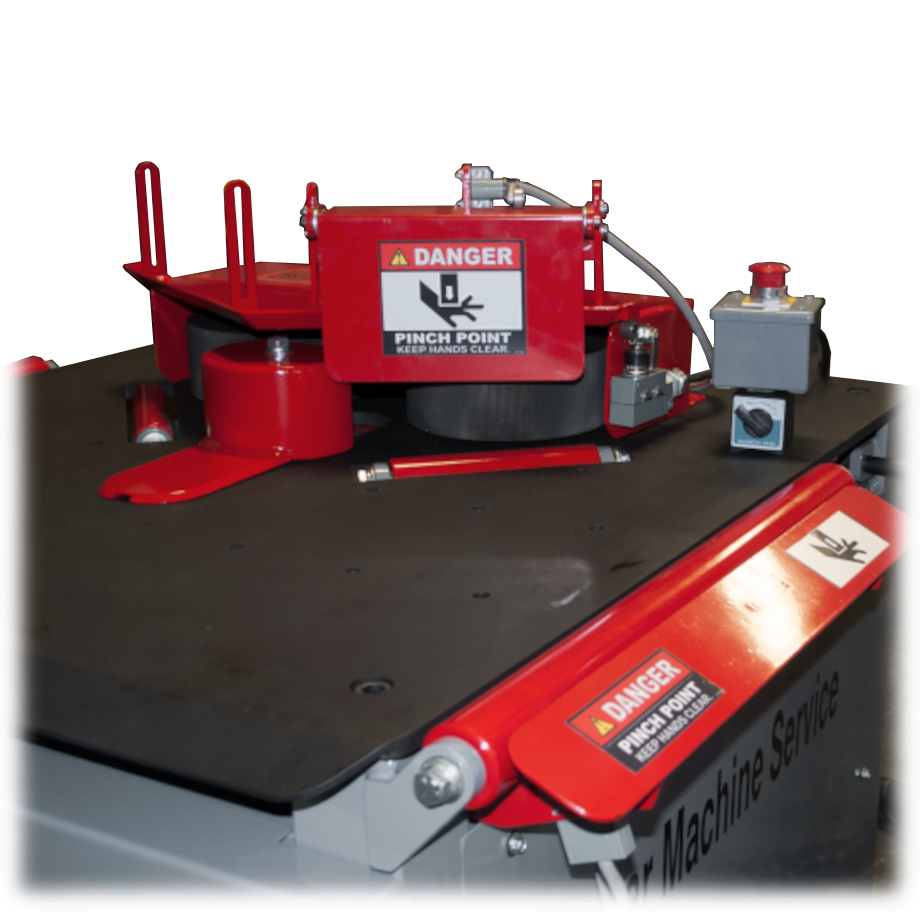

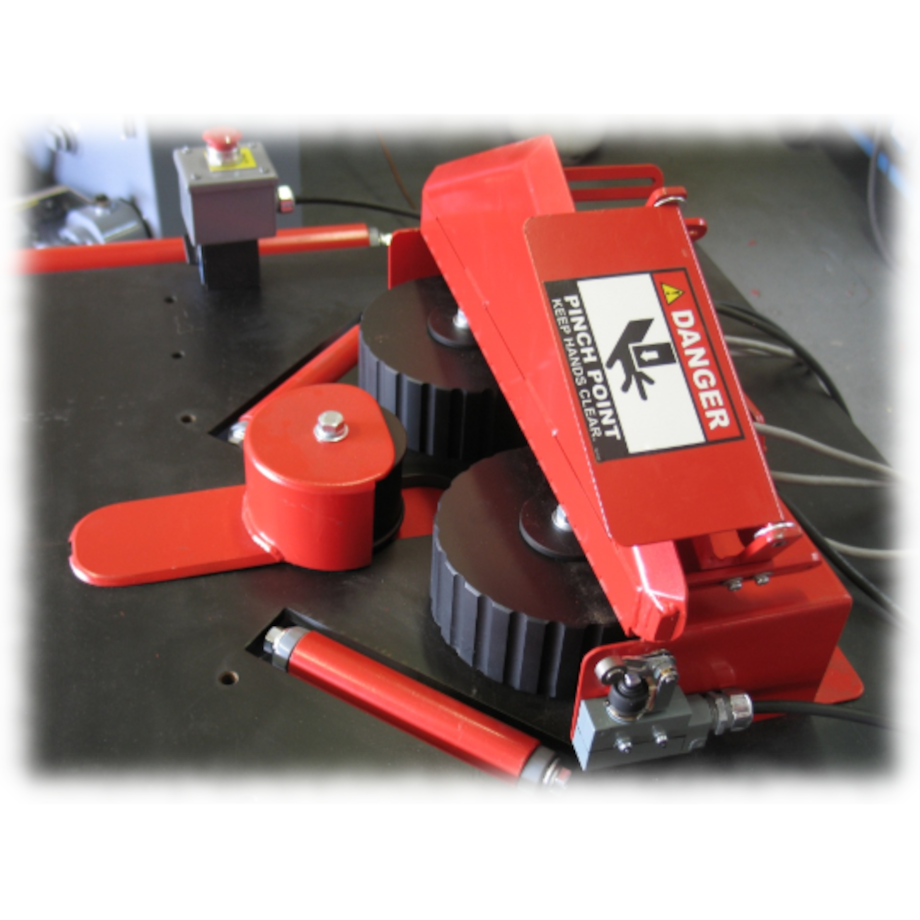

The RMS Radius Bender is fully guarded. The unique guard design allows the machine to bend either radius bars or circular bars. Optional sets of drive rolls are designed for circles or hoops.

The machine weighs approximately 3,000lbs and measures 36”W x 36”D x 34”H [91.4cm(W) x 91.4cm(D) x 86.4cm(H)] high. Speeds vary up to around 300ft/min [91.4m/min]. The heavy radius roll is driven by an independent 1.5hp motor and controlled by an electronic motor inverter.

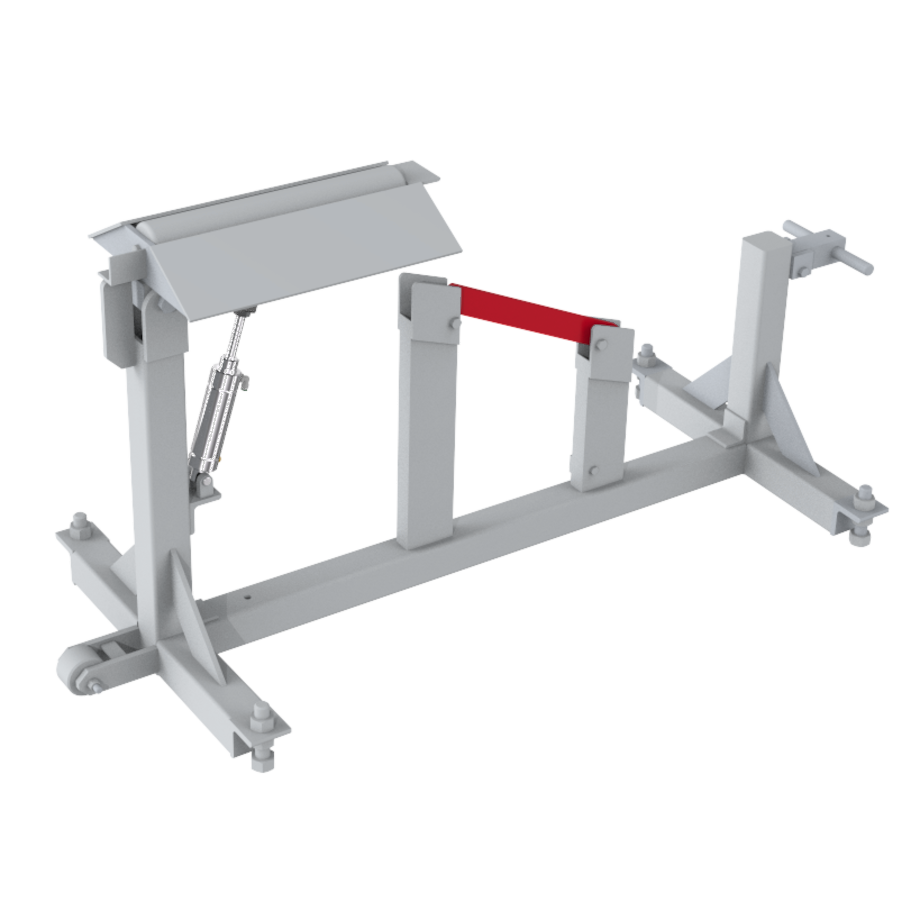

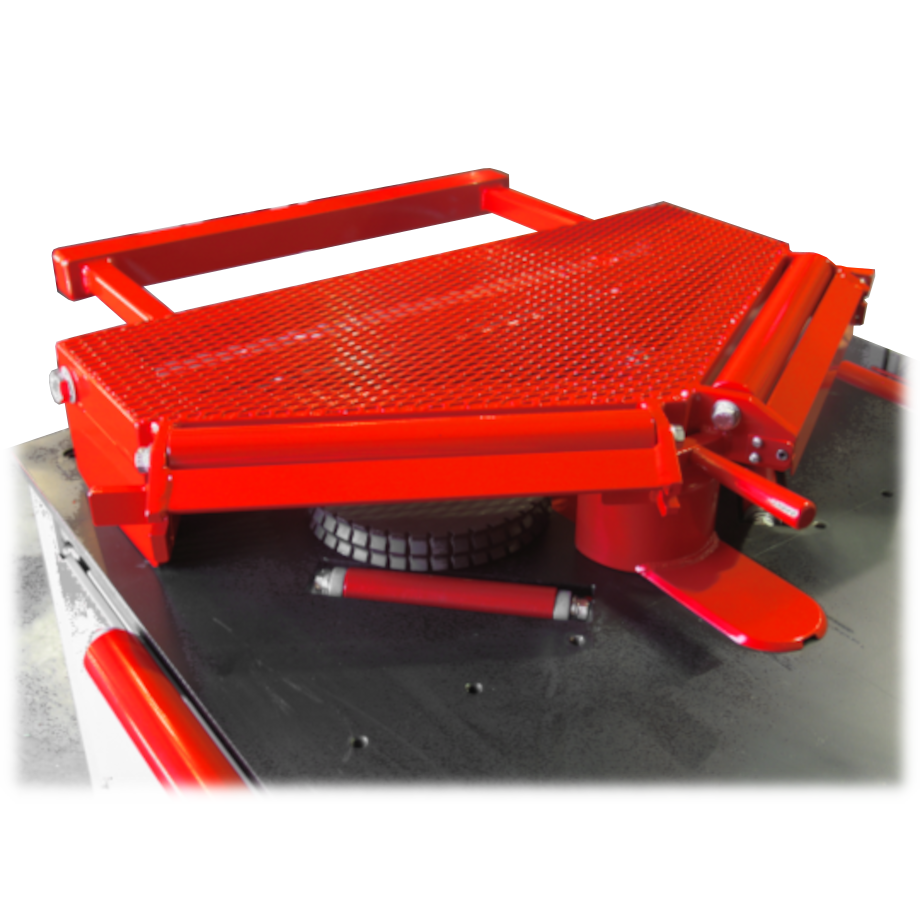

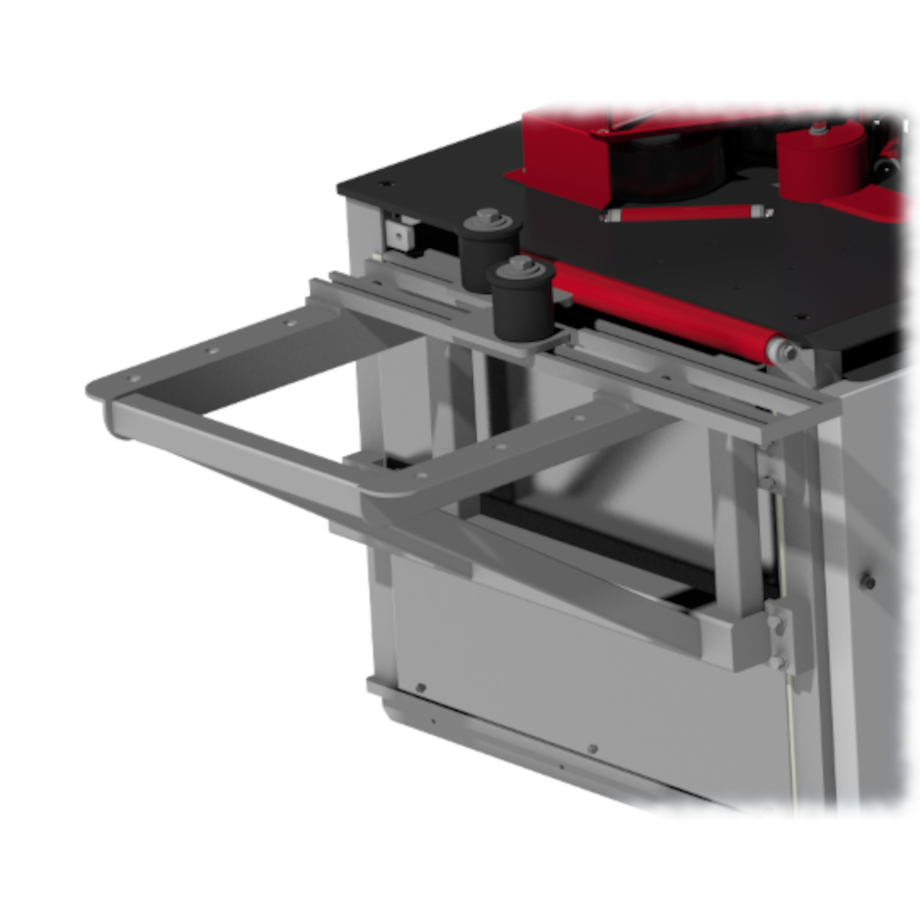

Auto release permits bent bar to be safely and easily removed after the bend is completed. The RMS Radius Bender has optional attachments to aid in production and safety, such as the bin system, the bar on top cover, and the ramp stand. These attachments work in conjunction with the machine to provide better support and space management to keep the operator producing faster and safer.

MACHINE SPECIFICATIONS

MAX BAR SIZE
#11 [36mm]
FOOTPRINT
3'W x 3'D x 34"H
[.91m(W) x .91m(D) x .86m(H)]
WEIGHT
2200lbs [998kg]
BENDING MOTOR
5hp gear motor [3.73kW]
FEED RATE
up to 300ft/min [91m/min]
